Laser heads

Microchip 5 kHz 266 nm Laser

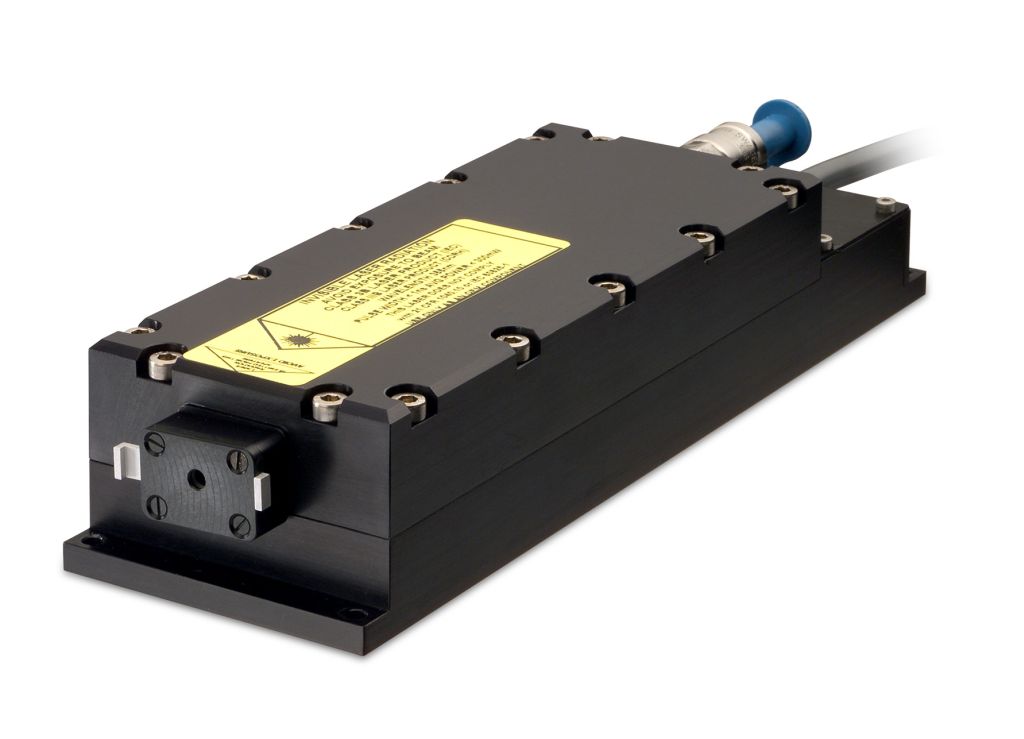

SNU-02P-10x

The SNU-02P is a robust laser head at the base Teem Photonics long lifetime design preserving a good beam quality over its operationg life.
The Microchip laser series are also easy to operate and service ; controllers can be used with every laser head model and swapped within minutes while conserving constant operating parameters.



Download our technical specification

KEY FEATURES

Family: MicroChip

Wavelength: 266 nm

Energy/Pulse: 0.3 µJ

Repetition rate: 6 kHz

Triggered: no

Single frequency: no

Pulse duration: 600 ps

Average power: 2 mW

Peak power: 0.5 kW

Package: SNx

CONTROLLER

MLC-03A-xR1

View controller
