Laser heads

Short Pulse 5 Watts MOFA

HNP-70F-100

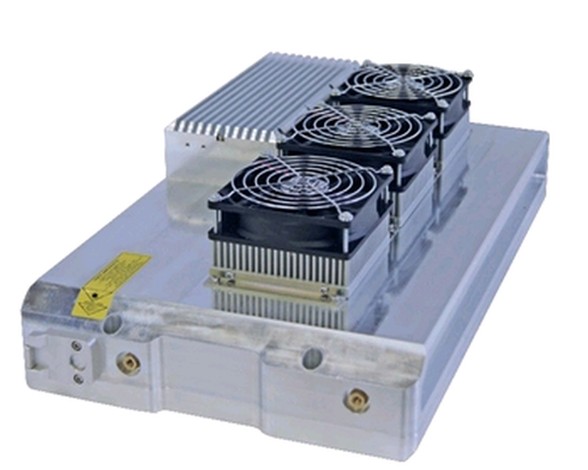

The HNP-70F amplified laser is a PicoSpark series laser, our higher average power family. Based on a microchip seeder and an efficient MOFA (Master Oscillator Fiber Amplifier) amplification stage, this lasers produces 550 ps pulses of 1064 nm light at 70 kHz with an average power reaching 5 watts. The laser operates with a single emission frequency.

KEY FEATURES

Family: PicoSpark

Wavelentght: 1064 nm

Energy/Pulse: 80 µJ

Repetition rate: 65 kHz

Triggered: no

Single frequency: yes

Linewidth: 3 pm

Pulse duration: 550 ps

Average power: 5 W

Peak power: 145 kW

Package: HNx

APPLICATIONS

CONTROLLER

Included
